6 print heads

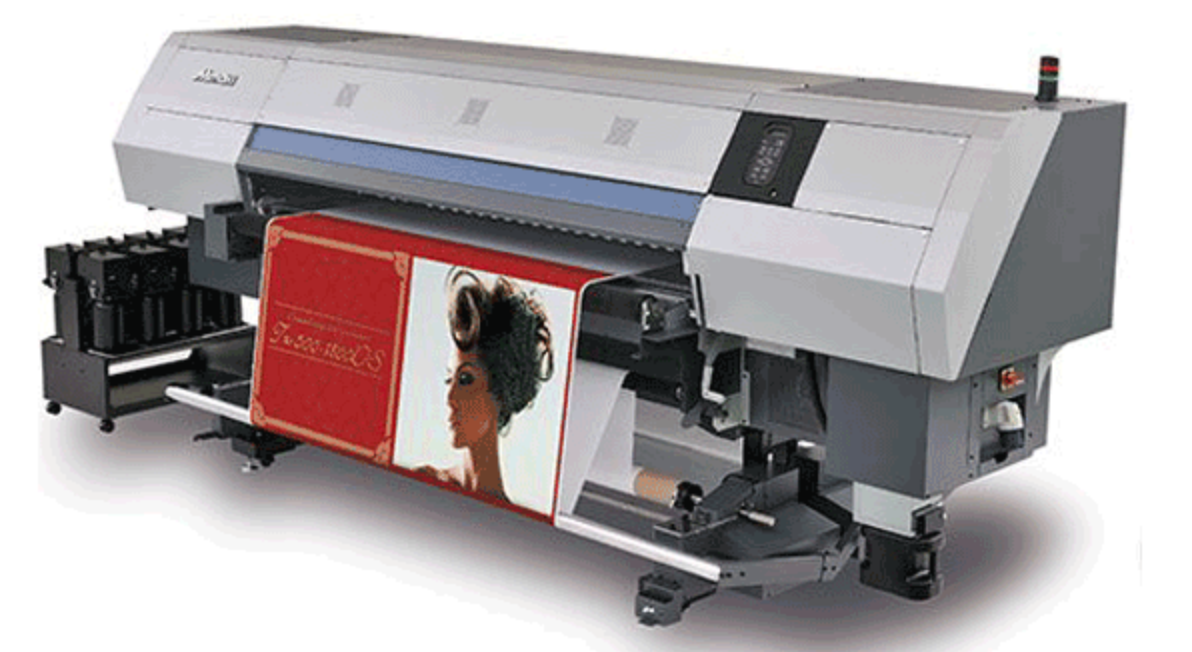

The TS500 1800 DS has a newly developed 6 printhead technology, in a checkerboard formation, with 1280 nozzles per printhead - so it can deliver an unrivalled speed of 150m2/hour in 4 colour mode. It can work with variable print spot sizes from 7 picolitres up to 35 picolitres.
Key features
- Incredible print speed of 150 m2/h (high speed mode)
- New fast-drying SB300 ink
- Mimaki Advanced Pass System (MAPS) reduces print imperfections in fast mode
- Mimaki Degassing Module allowing the use of undegassed ink
- Mist Removal Filter for increased print stability
- Automatic winding system with roll options up to 30cm and 60kg
- Maximum media width is 180cm
- Replacement function for dropped/deflated nozzles
| Model | TX500-1800DS |
|---|---|
| Print head |
6 printheads with 3 staggered conformation |
| Maximum print width | 1850 mm |
| Resolution | 300dpi, 450dpi, 600dpi, 900dpi, 1200dpi |
| Print mode |
4 Colours (Uni / Bi)
300 x 300 dpi 300 x 450 dpi (HQ) 600 x 900 dpi 300 x 300 dpi (HQ) 600 x 600 dpi 600 x 1200 dpi |
| Ink type |
Sublimation ink Sb300 (BL, M, Y, KD) |
| ink supply system |
2L bottle / each color |
| Ink degassing module | yes |
| Media type |
Polyester |
| Media size |
Minimum: 297 mm, Maximum: 1,910 mm |
| Media thickness |
more than 0.2 mm |
| Role weight |
more than 60kg |
| Role dimension |
300 mm, inside: 76 mm |
| Media heating |
Heating the underside of the media at the front of the machine |
| Print gap |
1.5 mm ~ 7 mm (Stepless adjustment) |
| Dimensions | 3,830 x 1,440 x 1,700 mm (without bulk system) |
| Weight | 750kg |
