Mimaki TX300P-1800B

Mimaki TX300P-1800B

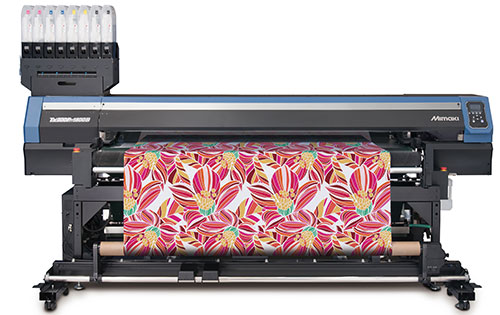

The TX300P-1800B is the first printer designed for direct fabric printing to use Panasonic's high-performance heads. It is a belt version of the machine, where the media feed to the printer is not provided by a standard mechanical feed using a roughened shaft, but by a sophisticated "sticky belt" or "sticky belt" type mechanism.

This technology is practically the only one that allows printing of stretch materials without any problems. To prevent the material from being deformed by stretching, it is glued to the conveyor "sticky belt" in a relaxed state and under the print heads the material moves fixed on the conveyor belt. In practice, the TX300P is most commonly used for the production of woven fabrics for garments, woven fabrics for interior design, and also furniture and furnishing textiles such as upholstery or curtains. The original high quality inks come in a variety of variations, making it very versatile. Sublimation, dispersion, reactive, acid and textile pigment inks are supported, supplied in 2l pouches for the MBIS system to ensure you spend every last drop of paint.

Book an appointment to visit our showroom where we will be happy to give you a no obligation demonstration of the technology, produce the necessary samples and discuss all the peculiarities of the technology.

Book a showroom appointment

Key features

    • High print speed up to 53m 2 /h.
    • Sticky belt system for printing on stretch materials
    • Sublimation, dispersion, reactive, acid and textile pigment inks
    • MBIS refill system for large ink packages
    • NCU system for checking missing nozzles
    • Latest MAPS rasterization system for continuous inks on textiles

    Technical specification
    Print head
    		 Panasonic, 4 line printhead
    Print resolution
    		 up to 1440 dpi
    Drop size
    		 6pl - 24pl
    Maximum print width 1880mm
    Maximum media width 1900mm
    Media thickness
    		 do 1mm
    Roll media weight
    		 40kg
    Roll media diameter
    		 250mm
    Media type
    		 cotton, silk, hemp, but also synthetic
    Power supply
    		 220
    Power consumption
    		 1440W
    Interface USB, LAN
    Dimensions 3187x1798x1845 mm
    Weight 627kg
