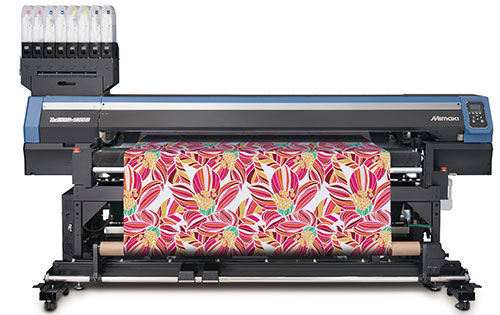

Mimaki TX300P-1800B

The TX300P-1800B is the first printer designed for direct fabric printing to use Panasonic's high-performance heads. It is a belt version of the machine, where the media feed to the printer is not provided by a standard mechanical feed using a roughened shaft, but by a sophisticated "sticky belt" or "sticky belt" type mechanism. This technology is virtually the only one that allows the printing of stretch materials without any problems.

In order to prevent the material from being deformed by stretching, a "sticky belt" is glued to the conveyor in its relaxed state and the material moves under the print heads, fixed on the conveyor belt. In practice, the TX300P is most commonly used for the production of woven fabrics for garments, woven fabrics for interior design, and also furniture and furnishing textiles such as upholstery or curtains. The original high quality inks come in a variety of variations, making it very versatile. Sublimation, dispersion, reactive, acid and textile pigment inks are supported, supplied in 2l pouches for the MBIS system to ensure you spend every last drop of paint.

Arrange a visit to our showroom where we will be happy to give you a no-obligation demonstration of the technology, produce the necessary samples and discuss all the peculiarities of the technology.

Book a showroom appointment

Features

High print speed up to 53m 2 /h.
Sticky belt system for printing on stretch materials
Sublimation, dispersion, reactive, acid and textile pigment inks
MBIS refill system for large ink packages
NCU system for checking missing nozzles
Latest MAPS rasterization system for continuous inks on textiles

Technical specification
Printhead	Panasonic, 4 in-line printheads
Print resolution	up to 1440 dpi
Droplet size	6pl - 24pl
Maximum print width	1880mm
Maximum media width	1900mm
Media thickness	1 mm or less
Rolled media weight	40kg
Rolled media diameter	250mm
Media type	cotton, silk, hemp, but also synthetic
Power supply	220V
Power comsumption	1440W
Interface	USB, LAN
Dimensions (WxDxH)	3187x1798x1845 mm
Weight	627kg
