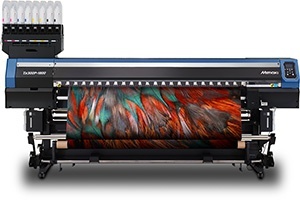

New print head allows printing on a wide range of media
When printing on textured (or combed) textile media, the print head must be far enough away from the media to avoid touching it at critical moments. On most printers, this causes a significant loss of print sharpness and inconsistency on the colour surfaces. Panasonic's print head is designed to be able to shoot ink drops from a significantly greater distance, thus eliminating all the problems associated with greater head distance.Arrange a visit to our showroom where we will be happy to give you a no obligation demonstration of the technology, produce the necessary samples and discuss all the specifics of the technology.
Reliable media feeding system
A stable media feeder is very important in direct textile printing. The tension applied to the textile during printing is continuously varied in this printer depending on the diameter of the infeed and outfeed rolls. The perfect control of the media displacement therefore eliminates any potential problems with media displacement and thus the resulting banding or other undesirable effects
Features
- High print speed up to 53m 2 /h.
- Robust construction and perfect winding system
- Sublimation, dispersion, reactive, acid and textile pigment inks
- MBIS refill system for large ink packs
- NCU system for checking missing nozzles
- Latest MAPS rasterization system for continuous inks on textiles
| Technical specification | |
|---|---|
| Printhead | Panasonic, 4 in-line printheads |
| Print resolution | up to 1440 dpi |
| Droplet size |
6pl - 24pl |
| Maximum print width | 1880mm |
| Maximum media width | 1900mm |
| Media thickness |
1mm or less |
| Rolled media weight |
40kg |
| Maximum roll diameter | 250mm |
| Media type |
cotton, silk, hemp, but also synthetic |
| Power Supply |
220V |
| Power consumption |
1440W |
| Interface | USB, LAN |
| Dimensions (WxDxH) |
3187x990x1857 mm |
| Weight | 255 kg |
