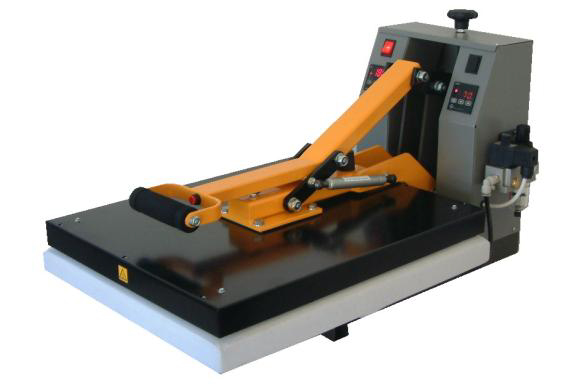

Drucktech SP45 A

Professional solution for fixing and transferring small format applications. Most often used for the purpose of fixing directly printed T-shirts (digital, screen printing). A huge advantage is the pneumatic cushion, which inflates after closing the press and with relatively high pressure perfectly envelops the pressed material. This solution completely eliminates vapour migration during fixing or product transfer - thus avoiding very common production problems.

It has a digital seconds counter that signals the pneumatic device when the seconds have elapsed and the press opens automatically. Thus, there is no risk of product spoilage due to inattention and increases the operator's efficiency - he does not have to wait for the time to elapse. The heating plate is solid aluminium with coiled spirals, which gives the device high thermal inertia and no time is wasted waiting for reheating during production, even in the case of products taking more heat.

Arrange a visit to our showroom where we will be happy to give you a no-obligation demonstration of the technology, produce the necessary samples and discuss all the peculiarities of the technology.

Book a showroom appointment

Features

Tabletop or rack design.
Self-adjusting heated plate (it may be rotated).
Changeable, rotatable workplate.
The flat membrane plates work as a traditional workplate if used without compressed air.
Works with membrane and traditional plates as well.
High surface pressure, up to 1,5 kg/cm².
Programmed or manual time setting.
Timer for postproduction.
Customizable control unit.
Counter (can be reset).
Protection against switch-on after an eventual power outage.
System check on start.
Warning signal till the machine reaches the set temperature.
Heating element cast into aluminium.
Lifelong guarantee on heated plate.
Strong, massive structure.
Replaceable protective teflon sheet on heated plate.

Technical specification
plate, heated plate	50 x 40 cm
max. material thickness	1,5 cm
power	230 V 2100W
setting the timer	0 - 999 sekúnd
temperature	230° C
pneumatic supply	2-10 bar
max. pressing power	0,7 bar
working pressure	0,5 bar
consumption	15l / minúta
dimensions	42x75x40 cm
weight	56 kg
