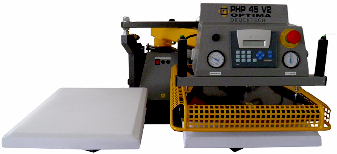

Drucktech PHP 45 V2 Optima

Drucktech PHP 45 V2 Optima

The Hungarian company Drucktech is a long-standing market leader in small-platen presses and is generally regarded as a leader in terms of product quality and stability. At first glance, it is already a machine with a very robust construction. This professional semi-automatic heat press is designed for production and can handle even the heaviest production loads - whether in screen printing, direct digital printing on cotton or sublimation. It is double-platen, which means that the operator can prepare the substrate on one platen while the fixing takes place on the other.

A huge advantage is the high thermal inertia of the heating plate, which can ensure a very stable temperature indeed. The pressure is created by a pneumatic cushion that inflates and perfectly copies the product, preventing vapour migration during transfer or fixing of the product, while creating an even pressure over the entire surface. As it is a semi-automatic press, the operator is not forced to exert any physical effort, the pressing sequence is triggered by two buttons and takes place automatically. A timer that automatically opens the press is a matter of course - you don't have to worry that when the operator is busy, screw-ups might occur. Automatic opening is of course an important optimising element in your production.

An interesting advantage is also the possibility to rotate the press plates by 90° if this suits your production more.

There is also the MAXIMA model, which offers higher pressure and greater media thickness.

Arrange a visit to our showroom, where we will be happy to give you a no-obligation demonstration of the technology, produce the necessary samples and discuss all the peculiarities of this technology.

Book a showroom appointment

Features

  • Automatic movement of heated plate after moving the heated plate (can be switched on or off)
  • Adjustable distance between heated-plate and workplate
  • Self-adjusting heated-plate (it may be rotated).
  • Safety frame
  • Different time setting for the 2 plates
  • The flat membrane plates work as a traditional workplate if used without compressed air.
  • Changeable, rotatable workplate.
  • Works with membrane and traditional plates as well.
  • High surface pressure.
  • Optimised heating power (value can be displayed)
  • Customizable control unit.
  • Warning signal till the machine reaches the set temperature.
  • Counter (can be reset).
  • Protection against switch-on after an eventual power outage.
  • System check on start.
  • Heating element cast into aluminium.
  • Lifelong guarantee on heated plate.
  • Strong, massive structure.
  • Replaceable protective teflon sheet on heated plate.
Technical specification
plate, heated plate
 40 x 50cm
membrane plate
 yes
changeable plate
 yes
autorelease yes
power 2100W / 230V
compressed air consumption
 40l / min
max. pressing power kg/cm2 0,7
max. material thickness 4cm
dimensions 105x85x60
weight 85kg
