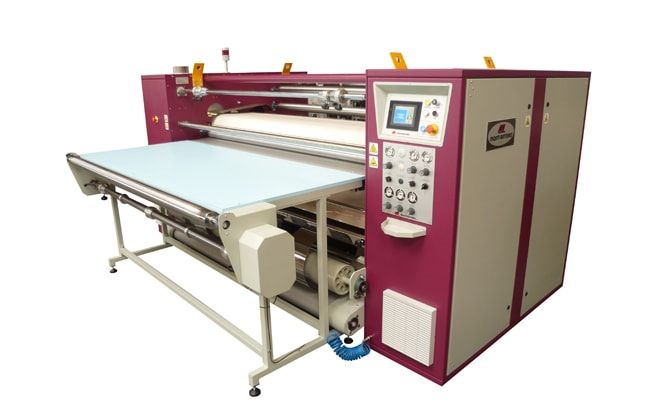

Monti Antonio mod. 855

Monti Antonio mod. 855

Universal professional calender designed for fixing and transfer of sublimation printing. Guarantees reduction of production costs while increasing production speed. Depending on the configuration, it can be operated by one or two operators. The heated roller is filled with oil, which ensures an absolutely uniform temperature on its surface and higher energy efficiency. The temperature variation is declared by the manufacturer with a maximum deviation of plus or minus 1°C. It is a calander with a table, which allows for multiple combinations and its possibilities are limited practically only by the production width of the device.

This high production machine is ideal for textile applications such as sportswear, flags and other products where its capabilities can be exploited. It is an extended, more powerful variant of the 853.

Arrange a visit to our showroom where we will be happy to give you a no-obligation demonstration of the technology, produce the necessary samples and discuss all the special features of this technology.

Book a showroom appointment

Printing options

Roll of transfer paper -> roll of material; roll of transfer paper -> pieces of material; pieces of transfer paper -> pieces of material; pieces of transfer paper -> roll of material.

Advantages of Monti Antonio over the competition

    • At the same size, virtually double the weight means solid materials. By design, torsional rigidity makes Monti Antonio machines virtually unbreakable.
    • Pneumatic media pressure adjustment, pneumatic disc brakes (not mechanical threaded rod adjustment) can adjust and control media pressure incomparably accurately during printing. Precise control of the braking force on each incoming material (paper, cloth, protective paper)
    • Continuous control and pneumatic centering of the felt not found in competing machines. This feature eliminates any problems with felt "running off" sideways
    • Patented oil heating roller with vacuum system with no oil change required. The surface is really only heated by the oil, achieving a constant heating of the entire surface. The print is perfect without colour defects caused by uneven temperature.
    • Set temperature stability +-1°C
    • Possibility to use large rolls of tracing paper - better consumables price
    • MA has been manufacturing thermal transfer presses for several decades. They have vast experience and have ironed out all the problems.
    • MA does not produce to stock, each calander is made for a specific customer according to their requirements.
    Technical specification
    Diameter of printing cylinder 500 mm
    Width of printing cylinder 2200 mm
    Working width
    		 1700 mm
    Heating element Oil
    Maximum temperature 230°C
    Tension controls Disk break
    Waste media winding
    		 Independent motorization
    Installed power
    		 35 kW
    Average electric consumption 21 kW/h
    Compressed air pressure 4-8 bar
    Net weight 3050 kg
