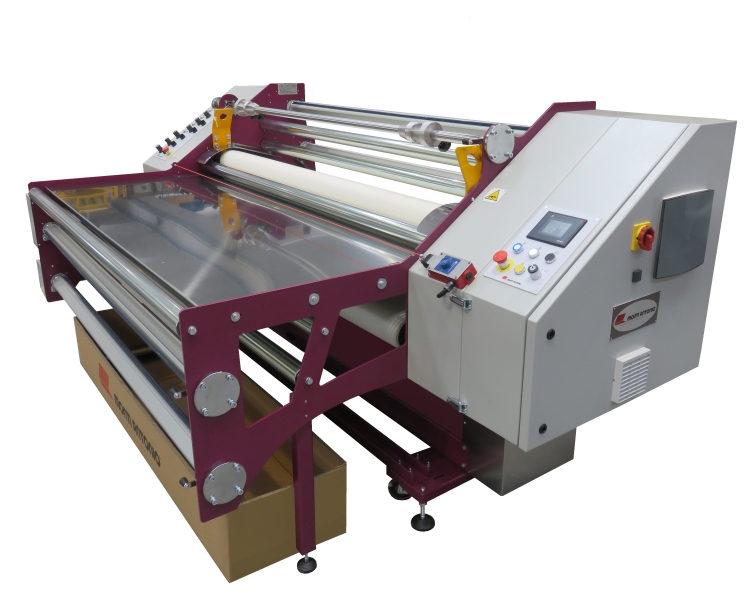

The calander with table also significantly increases productivity and allows transfers in the following configurations:
- from a roll of paper to a roll of material
- from roll of paper to pieces of material
- from pieces of paper to pieces of material
- from pieces of paper to a roll of material
Arrange a visit to our showroom, where we will be happy to give you a no-obligation demonstration of the technology, produce the necessary samples and discuss all the peculiarities of this technology.
Advantages of Monti Antonio over the competition
- At the same size, virtually double the weight means solid materials. By design, torsional rigidity makes Monti Antonio machines virtually unbreakable.
- Pneumatic media pressure adjustment, pneumatic disc brakes (not mechanical threaded rod adjustment) can adjust and control media pressure incomparably accurately during printing. Precise control of the braking force on each incoming material (paper, cloth, protective paper)
- Continuous control and pneumatic centering of the felt not found in competing machines. This feature eliminates any problems with felt "running off" sideways
- Patented oil heating roller with vacuum system with no oil change required. The surface is really only heated by the oil, achieving a constant heating of the entire surface. The print is perfect without colour defects caused by uneven temperature.
- Set temperature stability +-1°C
- Possibility to use large rolls of tracing paper - better consumables price
- MA has been manufacturing thermal transfer presses for several decades. They have vast experience and have ironed out all the problems.
- MA does not produce to stock, each calander is made for a specific customer according to their requirements.
Technical specification | |
---|---|
Diameter of printing cylinder | 20 mm |
Width of printing cylinder | 1800 mm |
Working width | 1500/1600 mm |
Heating element | Oil |
Maximum temperature | 230°C |
Tension controls | Third brakes |
Installed power | 10 kW |
Average electric consumption | 6,5 kW/h |
Compressed air pressure | 3-8 bar |
Net weight | 1050 kg |
